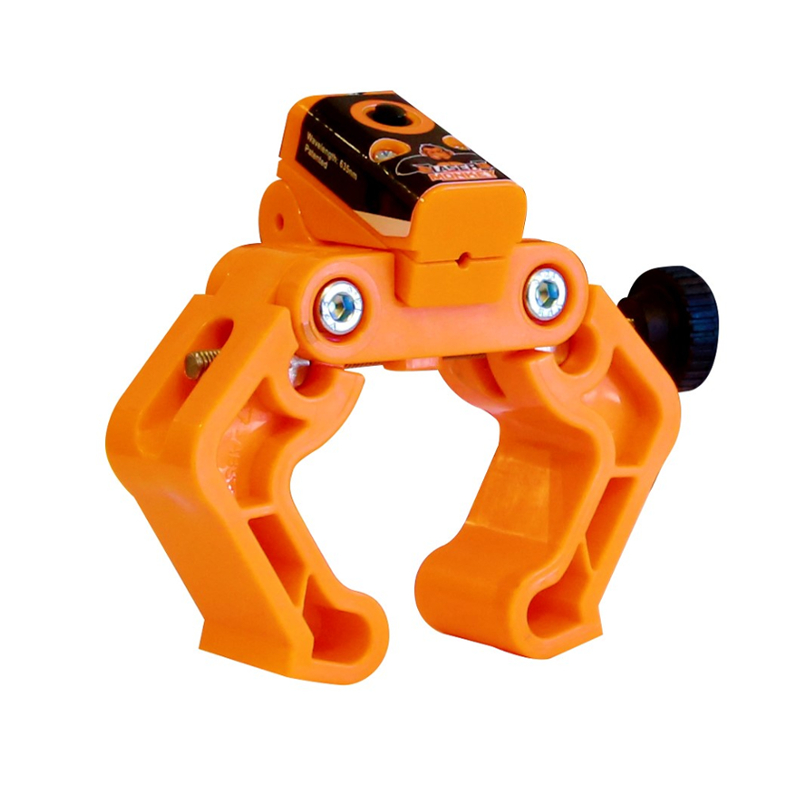

TRU-TENSION LASER MONKEY

Step 1:

Remove screws from the top of the Laser Monkey using Allonkey provided.

Step 2:

Ensure laser is pointing at the floor. Place the two batteries provided in the space behind the laser. Negative terminal of batteries to connect with laser spring.

Step 3:

Position head back onto body ensuring switch terminal fits behind both batteries. Screw the three screws back into head to secure in place.

Step 4:

Widen the arms on the Laser Monkey outwards by twisting the adjuster to allow enough space to fit over your chain or belt.

Step 5:

Pass the Laser Monkey over the chain/belt and adjust the arms inwards until they grip a flat part of the rear sprocket/pulley. Ensure the Laser Monnkey is gripping to clean, dirt free, flat parallel surfaces.

Step 6:

Point the laser down to the closest part of the chain/belt and turn on. The laser should appear in the centre of the chain link or belt. If not centralised initially, adjust positioning to centralise the laser.

Step 7:

Lift the laser head to point at the furthest visible point of the chain/belt towards the engine. Adjust the wheel alignment until the laser is showing at the centre point of the chain/belt. Your wheel will then be accurately aligned.

Step 8:

Lock the rear axle nuts and adjustment nuts, turn off the laser and remove the Laser Monkey from your sprocket or pulley.
